Homemade Sawtooth Polyphony
Accessibility, Affordability, Sustainability.
Open Source.
Features:
6 Analog VCOs (Voltage Controlled Oscillators)
6 Analog VCAs (Voltage Controlled Amplifiers)
LFSR White Noise generator
Velocity Sensitivity
Legato / Portamento / Pitch Glide
LED Note Indicators
Digital to Analog Envelope Generator
Digital to Analog LFO
Diode Ladder Low Pass VCF (Voltage Controlled Filter)
LFO Modulated VCO and VCF
Paraphony / Polyphony
Note Recycling
PT2399 Bucket Brigade Delay
Open source hardware and software
Dimensions: 40 × 16 x 7 cm
Need a blank case?
Includes:
Back Cover
Front Cover
Top Cover
Bottom Cover
24 x knobs
6 x size 1 switch caps
1x size 2 switch cap
assembly hardware (nuts and bolts)
DIY solder and assemble it yourself kit of the Synth 1.
Refer to the assembly guide and youtube playlist

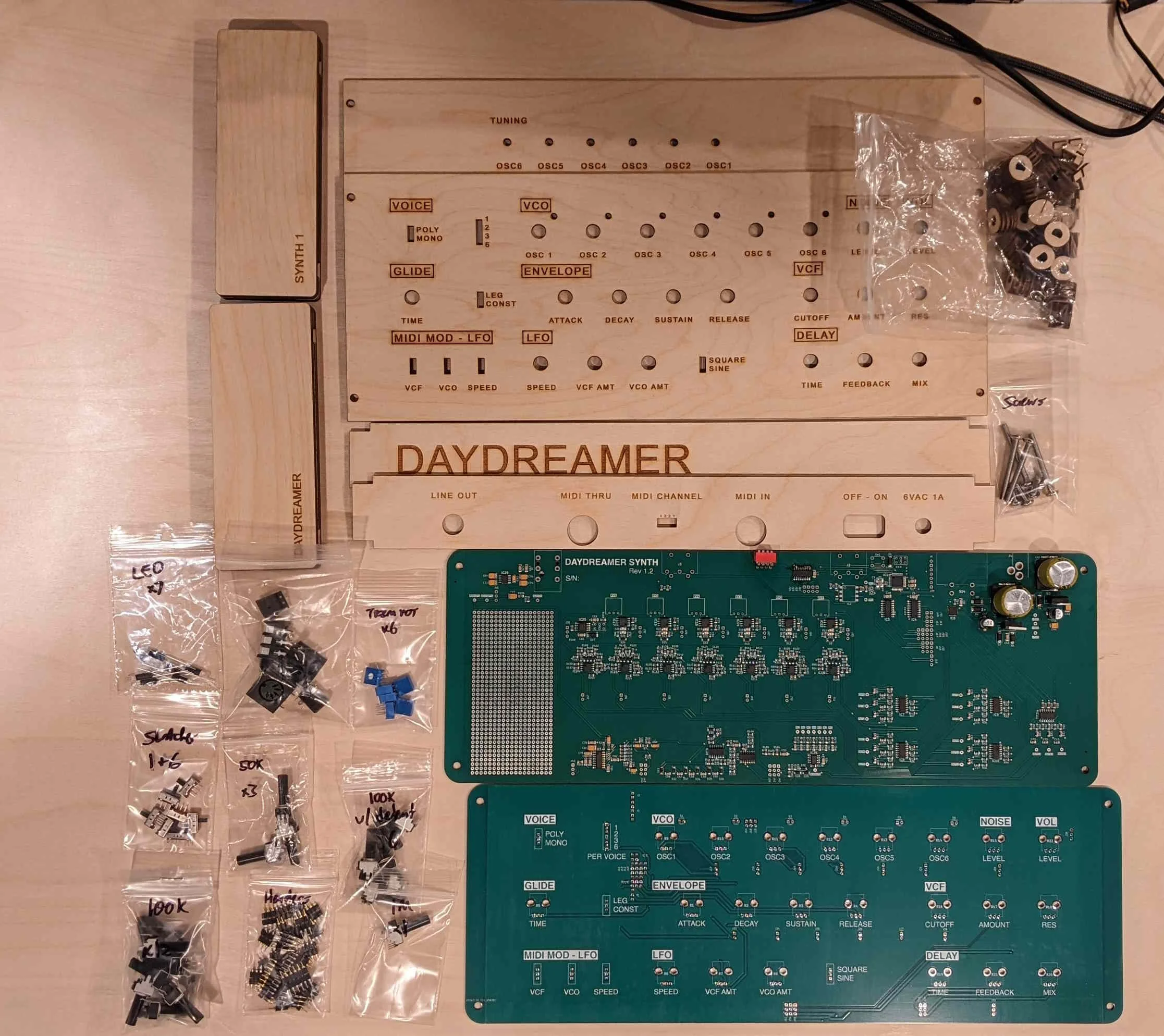

Kit contains:
Mechanical
2x side covers
1x Top, bottom, front, back panels
4x 8-32 1 ½ inch bolts
4x 8-32 ½ inch bolts
24x wooden knobs (2 spare)
1x large wood switch cover
6x small wood switch cover
Electrical
1x top pcb
1x bottom pcb
7x LEDs (1 spare)
6x 100k potentiometer (with detent)
12x 100k potentiometer
3x 50k potentiometer
1x 1M potentiometer
1x 4 position switch
6x 2 position switch
6x trimpot
2x MIDI female port
(1x 2.1mm female barrel port)
1x ¼ “ audio jack
1x rocker power switch
(1x 6N138 optoisolator)
A bunch of headers for connecting top and bottom pcb
1x6VAC power supply
Do this at your own risk. It’s recommended you purchase a constructed synth, as quality of the DIY kits is not guaranteed and support will be limited.
